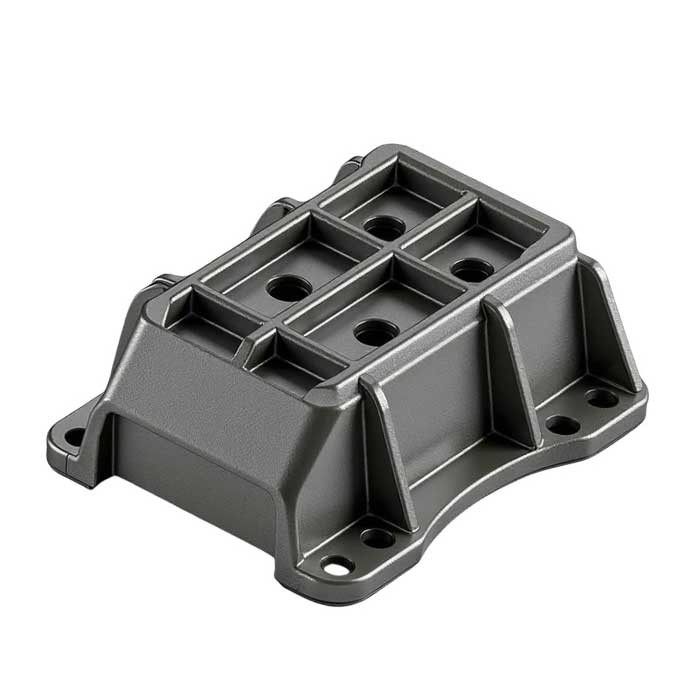

Supply Heavy Duty Trailer Truck Spring End Cap

1. Product Introduction

The Spring End Cap is a critical structural component within the mechanical leaf spring suspension system of commercial vehicles. Installed at the ends of the leaf springs, it interfaces with suspension hangers or equalizers. Its primary function is to secure the leaf spring's position, preventing side-to-side slipping during cornering or on uneven terrain, while also protecting the internal bushings from debris and premature wear. Cast from premium high-strength alloy steel, our Spring End Caps are tailored for B2B fleet operators and axle assembly plants demanding high-load and high-frequency performance, fully complying with international aftermarket standards.

2. Spring End Cap Features

• 1. High Tensile Strength: Manufactured from premium alloy cast steel or ductile iron, providing exceptional tensile and yield strength to withstand heavy-duty loads.

• 2. Precision Dimensional Tolerances: CNC machined to ensure a seamless and exact fit with standard leaf springs and hangers, significantly reducing assembly time.

• 3. Superior Wear Resistance: Contact surfaces undergo specialized heat treatment or induction hardening to minimize friction-induced wear, extending the overall lifespan of the suspension system.

• 4. Excellent Corrosion Protection: Available in E-coating, anti-rust oil, or hot-dip galvanizing finishes to maintain structural integrity in highly corrosive and humid environments.

3. Manufacturing Process

• 1. Precision Casting: Utilizing investment casting or high-quality resin sand casting based on load requirements, ensuring dense internal structures free from porosity or shrinkage defects.

• 2. Heat Treatment: Subjected to normalizing, quenching, and tempering to optimize the metallurgical structure, enhancing both toughness and fatigue resistance.

• 3. CNC Machining: Advanced CNC machining is applied to mounting holes, faces, and internal diameters that mate with bushings, guaranteeing micro-level assembly tolerances.

• 4. Surface Treatment: Following shot blasting, parts are coated with anti-rust paint or E-coating to improve aesthetic appeal and corrosion resistance.

• 5. Strict Quality Control (QC): Pre-shipment inspections include CMM dimensional checks, tensile testing, and spectrometer material analysis to ensure consistent batch quality.

4. Spring End Cap Applications

Heavy-Duty Trucks and Tractors

Flatbed, Lowbed, and Dump Semi-Trailers

Agricultural Trailers and Equipment

Specialty Construction Vehicle Suspensions

5. Mating Parts / Accessories

For optimal suspension performance, the Spring End Cap works seamlessly with the following components:

Multi-leaf / Parabolic Leaf Springs

Spring Pins (Greaseable or non-greaseable)

Bronze, Bi-metal, or Polyurethane Bushings

U-Bolts and Heavy-Duty Nuts

Front, Center, and Rear Suspension Hangers

6. Purchasing Precautions for B2B Buyers

• 1. Material Certification: Always request chemical composition and mechanical property reports (tensile/yield strength) from the supplier to ensure the material meets heavy-duty standards.

• 2. OEM Compatibility & Dimensions: Verify the inner diameter, hole spacing, and overall width of the end cap strictly match your existing leaf springs and pin systems to avoid assembly interference.

• 3. Load Rating Match: Different axle capacities (e.g., 13T, 16T, 20T) require specific thicknesses and material strengths. Ensure the purchased end caps are rated for the vehicle's designed payload.

• 4. Corrosion Resistance Needs: If the parts are destined for regions with severe winters (heavy road salt usage) or high humidity, specify higher anti-corrosion grades (e.g., requesting specific salt spray test hours) from the manufacturer.
