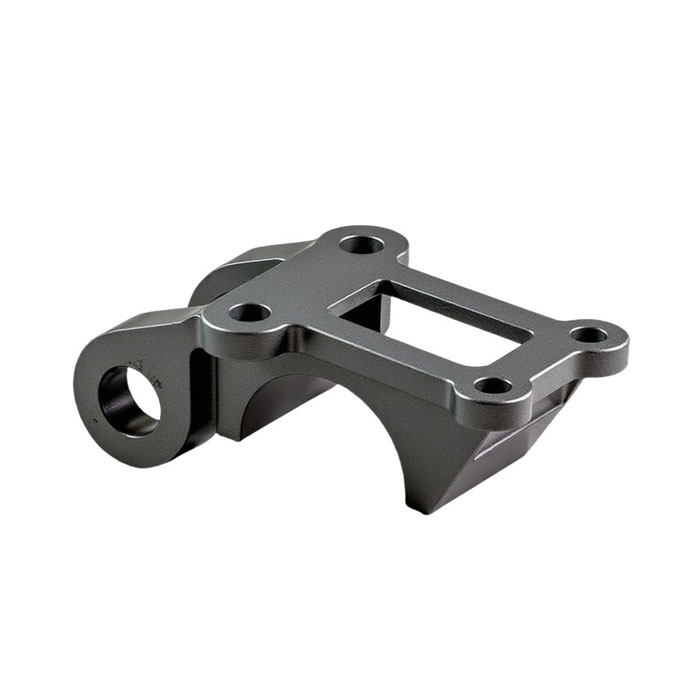

Custom Torque Rod Bracket for Trailer Suspension

1. Product Introduction

The torque rod bracket is a critical connecting component in commercial vehicle chassis and suspension systems. It securely mounts the torque rod (radius arm) to the vehicle frame or axle, functioning to absorb and transfer longitudinal and lateral forces generated during braking, acceleration, and driving on uneven terrains. Our custom brackets can be manufactured precisely according to your blueprints or samples, ensuring a 100% seamless fit with your air or mechanical suspension systems.

2. Key Features

Superior Load Capacity:

Constructed from high-strength alloy steel or ductile iron, offering excellent tensile strength and fatigue resistance for heavy-duty applications.

Precision Fit:

Machined using advanced CNC centers. Tight tolerance control on mounting holes and mating surfaces guarantees a hassle-free, gapless installation.

Outstanding Corrosion Resistance:

Available in various surface treatments including powder coating, E-coating, and hot-dip galvanizing to withstand salt spray, mud, and harsh weather.

Fully Customizable:

Dimensions, hole spacing, offset angles, and materials can be completely tailored to your specific suspension design.

3. Manufacturing Process

Mold Design & Tooling:

Precision mold development based on client CAD drawings or 3D models.

Forming (Forging/Casting):

Closed-die forging or precision casting (investment/resin sand) to ensure a dense internal metal structure free of porosity.

Heat Treatment:

Quenching and tempering processes to optimize mechanical properties, achieving the perfect balance of hardness and toughness.

CNC Machining:

High-precision milling and drilling of mounting surfaces and bushing holes.

Surface Treatment:

Sandblasting followed by electrostatic powder coating or anti-corrosion painting.

Strict Quality Control:

Comprehensive inspections including CMM dimensional checks, Ultrasonic Testing (UT), hardness testing, and salt spray tests.

4. Applications

Heavy-Duty Semi-Trailers (Flatbeds, Lowboys, Drop decks)

Commercial Truck & Dump Truck Suspensions

Air Ride Suspension Systems

Mechanical Leaf Spring Suspensions

Specialty Transport Vehicles (Tankers, Refrigerated Trailers)

5. Matching Components & Accessories

To streamline your purchasing process, we also supply or ensure compatibility with the following suspension components:

• Torque Rods / Radius Rods: Both adjustable and fixed types.

• Bushings: High-durability rubber and polyurethane bushings for shock absorption.

• U-Bolts & Fasteners: High-tensile mounting bolts, lock nuts, and washers.

• Torque Rod Pins.

6. What to Note When Purchasing (B2B Buyer's Guide)

1. Blueprint Verification: Always double-check critical geometric dimensions such as hole spacing, hole diameter, and offset angles before ordering. Providing 3D models or OEM part numbers is highly recommended.

2. Material vs. Load Rating: Select the appropriate material (e.g., Carbon Steel, 40Cr alloy, or Ductile Iron QT450) based on the Gross Vehicle Weight (GVW) and intended application.

3. Surface Finish Requirements: If your target market is in coastal areas or regions with harsh winters (road salt), request high-grade anti-corrosion treatments like Dacromet or E-coating + Powder Coating.

4. MOQ and Tooling Costs: Clarify the Minimum Order Quantity for custom parts. Tooling/mold fees are often refundable after the order volume reaches a certain threshold.

5. Factory Certifications: Ensure your supplier holds recognized quality management certifications such as ISO 9001 or IATF 16949 for automotive standards.
