Clamshell Grabs VS Orange Peel Grab Bucket

1. Common Types of Grab Buckets

A well-engineered grab bucket directly improves cycle times, reduces wear downtime and cuts operating cost for bulk and irregular material handling.

Grab buckets fall into two dominant categories: Clamshell Grabs and Orange Peel Grabs. Each has distinct geometry, closing mechanics and performance limits.

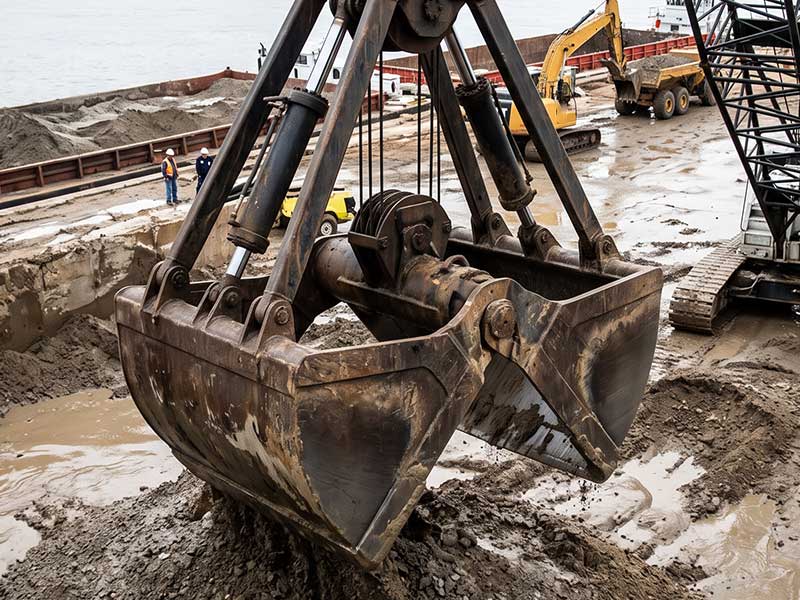

1. Clamshell Grabs feature two symmetrical shell jaws that close together like a clam shell, optimized for scooping free-flowing bulk goods.

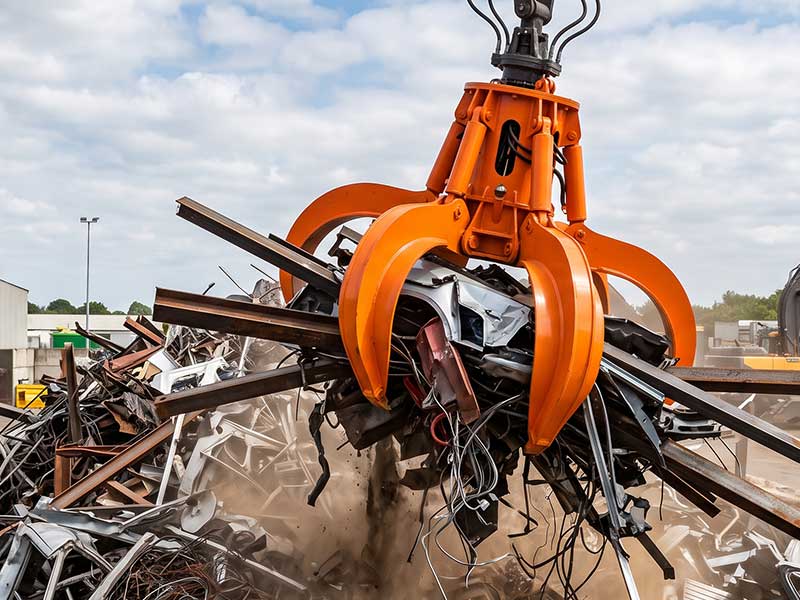

2. Orange Peel Grabs use multiple curved tines (typically 4–5 petals) closing radially, wrapping firmly around irregular, jagged, tangled loads.

Both hydraulic and mechanical rope-driven versions are available, and as a custom grab bucket supplier, we can integrate options such as 360-degree rotation, reinforced cutting edges, hard-facing overlay and custom pin connections to fit your carrier machine.

Clamshell Grabs vs Orange Peel Grabs Core Comparison

2. Applications & Grab Bucket Material Types

The choice of grab bucket starts with the material you handle. Bulk granular materials flow easily and fill Clamshell Grabs consistently. Scrap, rock and mixed waste interlock, requiring the multi-tine design of Orange Peel Grabs.

Below is a practical reference table linking handled materials, bulk density and recommended grab bucket configuration:

3. Manufacturing Steel Grades for Grab Bucket Construction

Wear resistance determines service life. Low-strength structural steel works for light-duty grain handling, while heavy-duty scrap and rock operations demand high hardness abrasion-resistant steel. Our factory selects base steel and cast components according to duty cycle, impact load and abrasive properties.

Custom note: As a custom grab bucket supplier, we can add carbide hard-facing overlay on high-wear zones (jaw lips, tine tips) to extend service life by 30–50% in severe scrap and rock handling environments.

4. How B2B Buyers Select the Right Grab Bucket

Selecting a grab bucket is not just picking a volume size. Lihuacasting recommends buyers work through these five key steps before placing orders:

• 1. Confirm material type and bulk density: This is the first filter. Fine bulk favors Clamshell Grabs. Irregular scrap/rubble points toward Orange Peel Grabs. Do not use an Orange Peel Grab for fine powder unless spillage is acceptable.

• 2. Verify carrier lifting limits: Excavator or crane rated lifting capacity must accommodate grab bucket self-weight plus payload, leaving a 15–20% safety margin. Overloading risks machine damage and safety hazards.

• 3. Check hydraulic specs (hydraulic grabs): Operating pressure, oil flow and hose connection pattern must match your host machine. When you order a custom grab bucket, provide your excavator/crane model, working pressure and coupler dimensions.

• 4. Define duty cycle: Intermittent light duty can use Q355 base steel. 24/7 heavy cycles with impact loading require NM500 or Hardox wear plates.

• 5. Mounting interface: Quick coupler, pin-on connection or crane rope lug dimensions are critical. Our China grab bucket supplier team can produce custom lugs and pin centres for non-standard machines.

Common mistakes buyers make:

1. Choosing too large a grab bucket for the lifting capacity;

2. Selecting Clamshell Grabs for tangled scrap;

3. Using mild steel for high-abrasion rock.

These errors cause premature failure, frequent repairs and lower hourly throughput.

5. Custom Grab Bucket Options

One major advantage of working directly with a China grab bucket supplier is flexibility. Beyond standard Clamshell Grabs and Orange Peel Grabs, custom grab bucket modifications include:

1. - 360-degree hydraulic rotation for precise placement

2. - Reinforced tine tips and replaceable cast teeth

3. - Hardfacing overlay on high-wear areas

4. - Custom volume, opening width and pin spacing

5. - Special sealing lips for low-leakage grain/powder handling

6. - Marine coating for dredging and saltwater port environments

All units go through welding inspection, dimensional checking and pressure testing before shipment. We provide full technical drawings, material certificates and installation guidance for every custom grab bucket order.

Final Takeaway

Whether your operation needs Clamshell Grabs for bulk port loading or Orange Peel Grabs for scrap recycling, the right grab bucket balances capacity, grip strength and wear resistance.

As a of construction machinery part manufacturer, Lihucasting supports OEM and custom grab bucket orders for global B2B buyers. Supply heavy-duty grab bucket attachments for excavators, overhead cranes and port handling machinery.

Send us your carrier specs, material data and working requirements, and our engineers will prepare technical drawings and quotation tailored for your site.
