Wholesale Drop Forged Lower Hinge Assembly

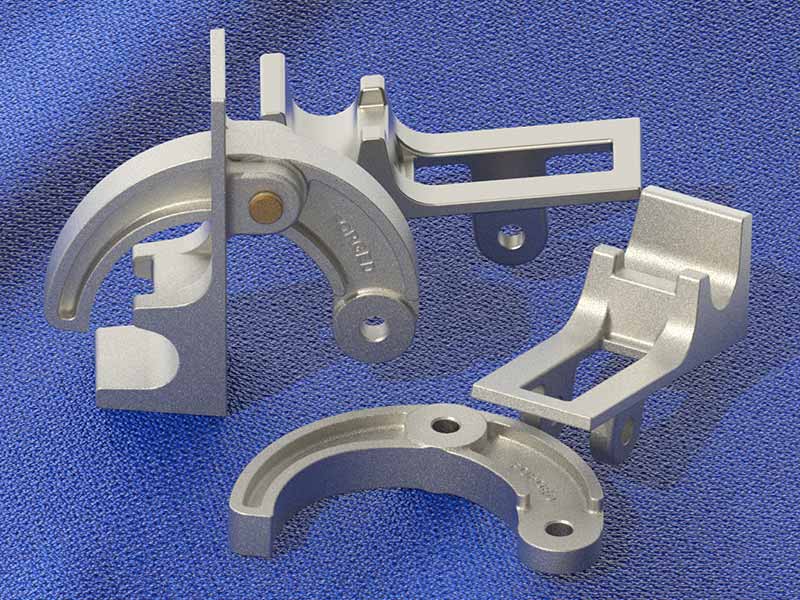

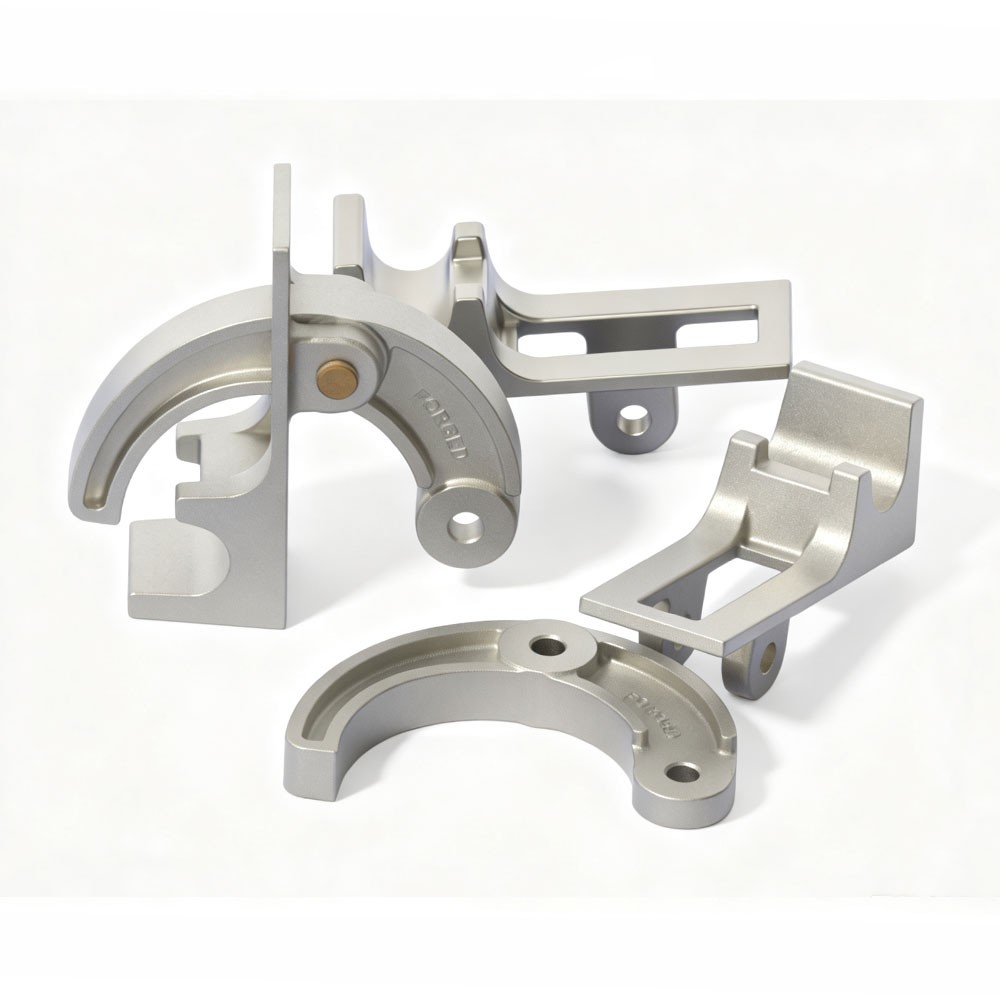

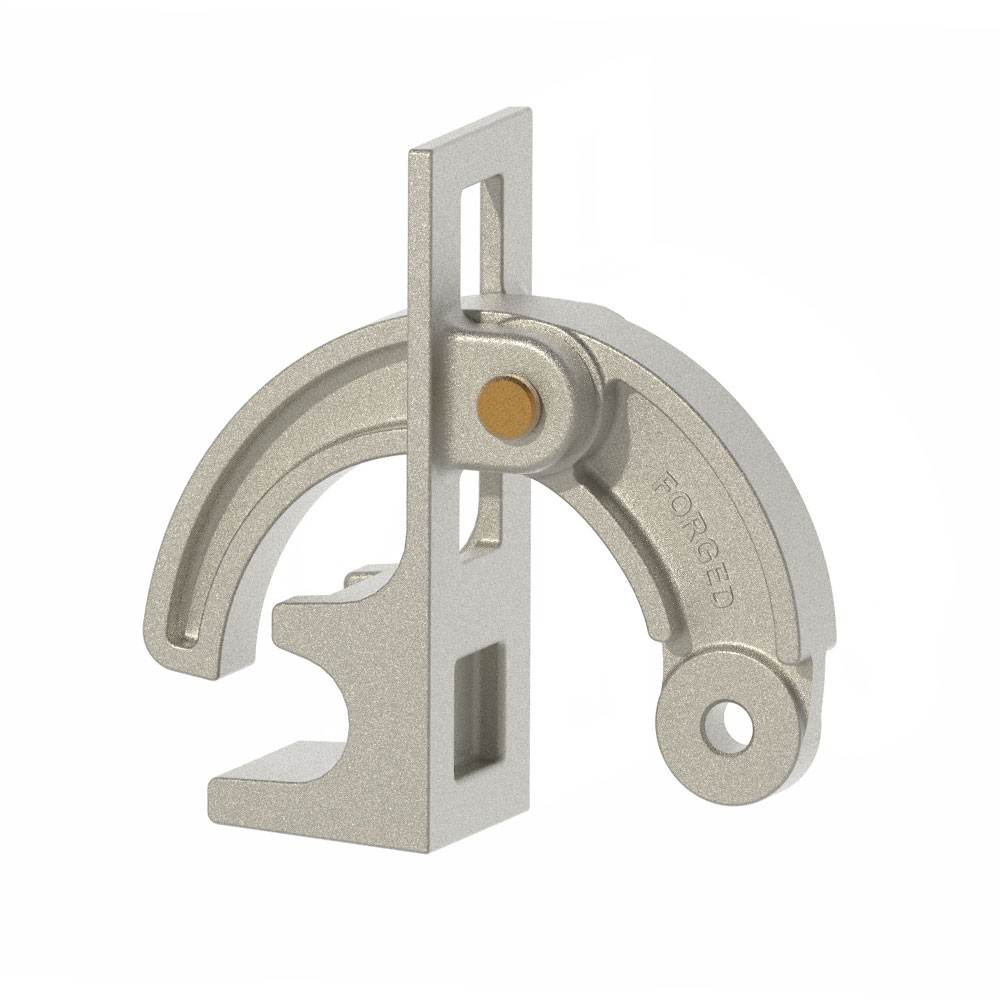

The Drop Forged Lower Hinge Assembly is engineered specifically for extreme-duty dump body applications, this assembly secures the lower portion of your tailgate with uncompromising grip. By utilizing a dual-steel forged construction, this latch system absorbs shock and resists metal fatigue far beyond the capabilities of traditional cast components. It is the ultimate upgrade for upfitters, fleet managers, and fabricators who demand hardware that works as hard as they do.

1. The Forged Advantage: Key Features

• Shatter-Resistant Forging: Manufactured entirely from drop-forged steel to eliminate the internal voids and brittleness inherent in cast products. This ensures superior ductility and impact resistance.

• Thicker Rib Geometry: We added mass exactly where it counts. The reinforced rib design handles extreme load shifts and rough terrain without bending or warping.

• Fabricator-Friendly Base: We eliminated the headache of welding high-carbon steel. The base is forged from C1020 low-carbon steel, guaranteeing smooth, deep, and consistent weld penetration.

• Vibration-Proof Locking: When paired with a complete latch system, this hinge ensures your lower tailgate stays dead-locked, preventing material spillage and rattling during transit.

2. Technical Specifications

3. Material Science & Manufacturing Process

The secret to this assembly's lifespan lies in the deliberate selection of distinct steel grades for different structural tasks, combined with the drop-forging process that aligns the metal's grain structure for maximum strength.

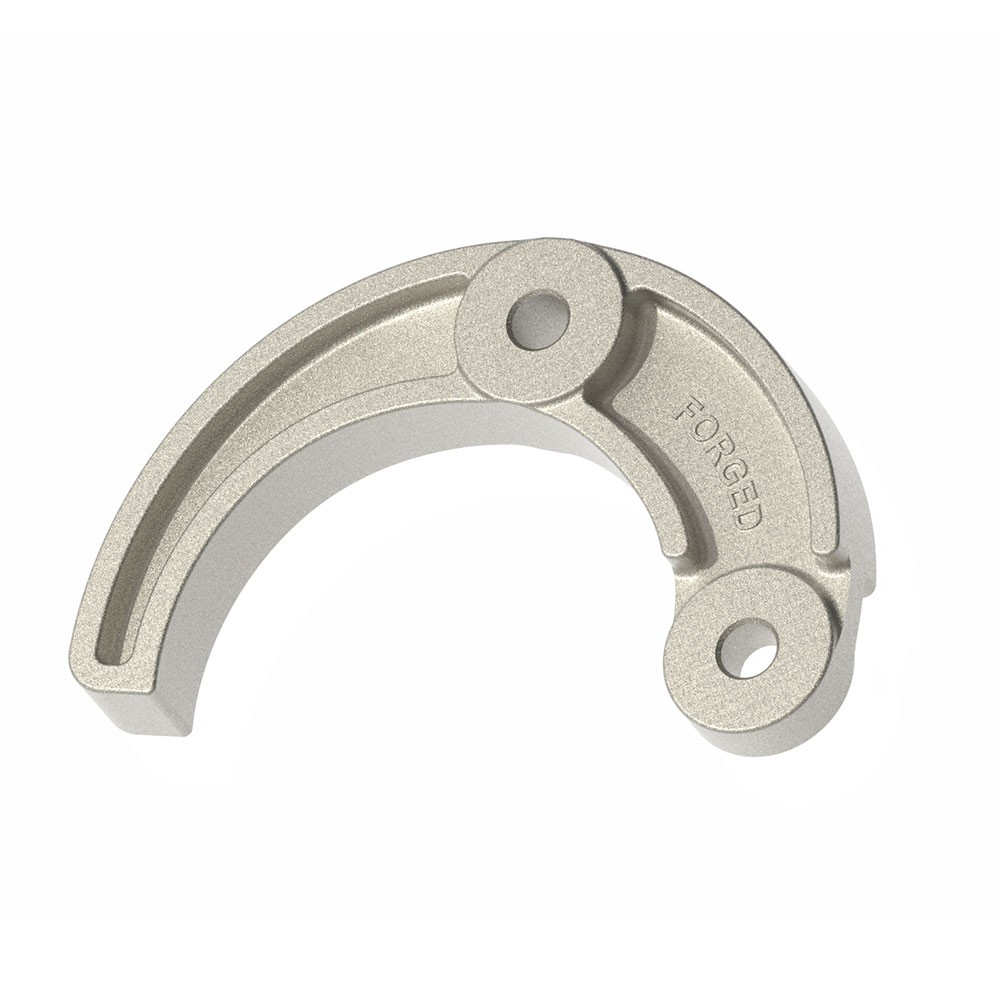

1. The Wear Component : The movable latch takes the brunt of the friction and impact. It is forged from C1045 Steel, prized for its high tensile strength and wear resistance, ensuring the jaw of the latch won't deform over thousands of cycles.

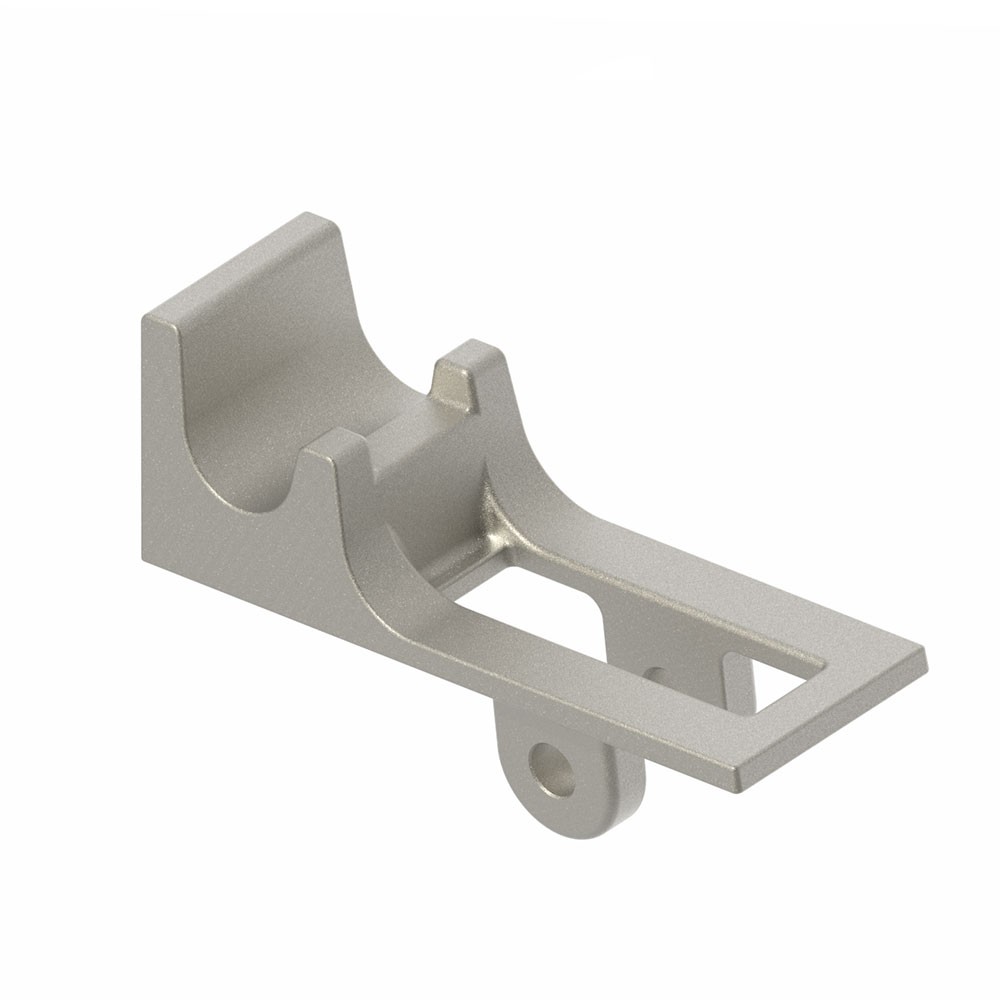

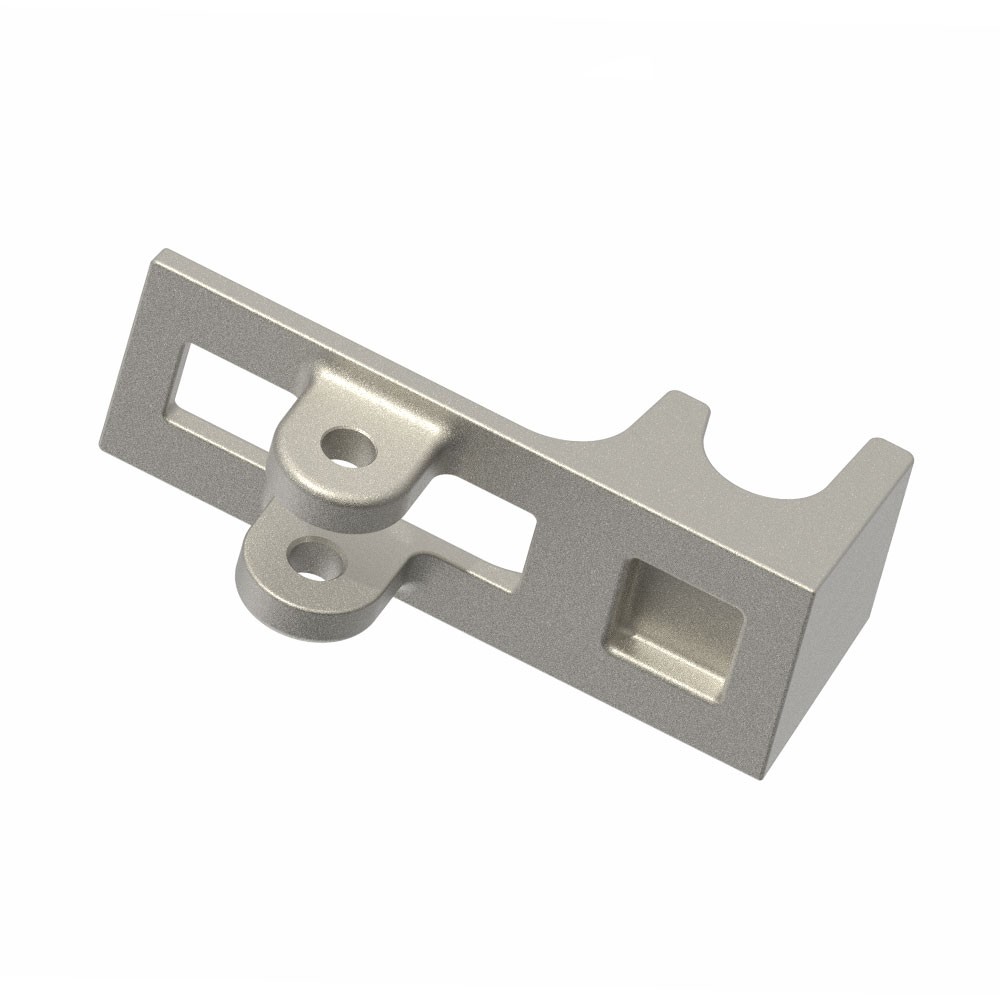

2. The Structural Component : The mounting base must bond flawlessly to your truck frame. It is forged from C1020 Steel, a lower-carbon alloy chosen specifically because it melts and fuses cleanly during welding without becoming brittle.

4. Primary Applications

Designed for environments where failure is not an option:

1. Commercial heavy-duty dump trucks

2. Custom-fabricated material haulers

3. Agricultural dump trailers

4. Construction and aggregate transport vehicles

5. Required Accessories (Sold Separately)

To properly integrate this hinge assembly into your build, you will need:

1. 1/2-Inch Hinge Pins: To connect the C1045 latch to the C1020 base.

2. Dump Body Hinge Linkage: Rods and hardware to connect the latch to the manual release handle.

3. Upper Pivot Hinges: To secure the top of the tailgate frame.

6. Installer & Buyer Considerations

1. Measure Twice: Verify that your tailgate posts are between 1-inch and 1.25-inches in diameter. A proper fit is crucial for minimizing wear and tear.

2. Welding Protocol: While the C1020 base is incredibly forgiving, ensure the truck's mounting surface is ground down to bare metal. Remove all rust, scale, and old paint to ensure maximum weld integrity.

3. Corrosion Protection: Because this hardware is shipped bare to accommodate welding, you must apply a high-quality primer and topcoat immediately after the installation cools to prevent environmental degradation.

7. Industry FAQs

Q: Why do my old cast hinges keep cracking?

A: Casting involves pouring liquid metal into a mold, which can leave microscopic air pockets and a random grain structure, making the metal brittle under shock. Our drop-forged hinges are smashed into shape as solid steel, aligning the grain and making them highly ductile and crack-resistant.

Q: Do I need a specialized welder to install this?

A: No. We specifically designed the base out of C1020 steel so that any competent fabricator using standard MIG or Stick equipment can achieve a structurally perfect weld without needing specialized pre-heating techniques.

Q: Is this a direct replacement for my factory latch?

A: It is highly versatile and fits standard 1-inch to 1.25-inch posts, making it a suitable replacement for most heavy-duty applications. However, since it is a weld-on component, a fabricator can adapt it to fit nearly any custom or standard dump body configuration.
