Custom Wholesale Heavy-Duty Pintle Hook

Pintle hooks (commonly referred to as sleeve-type or pin-type towing hooks) are heavy-duty towing devices widely utilized in industries that demand high load capacity and a wide range of motion.

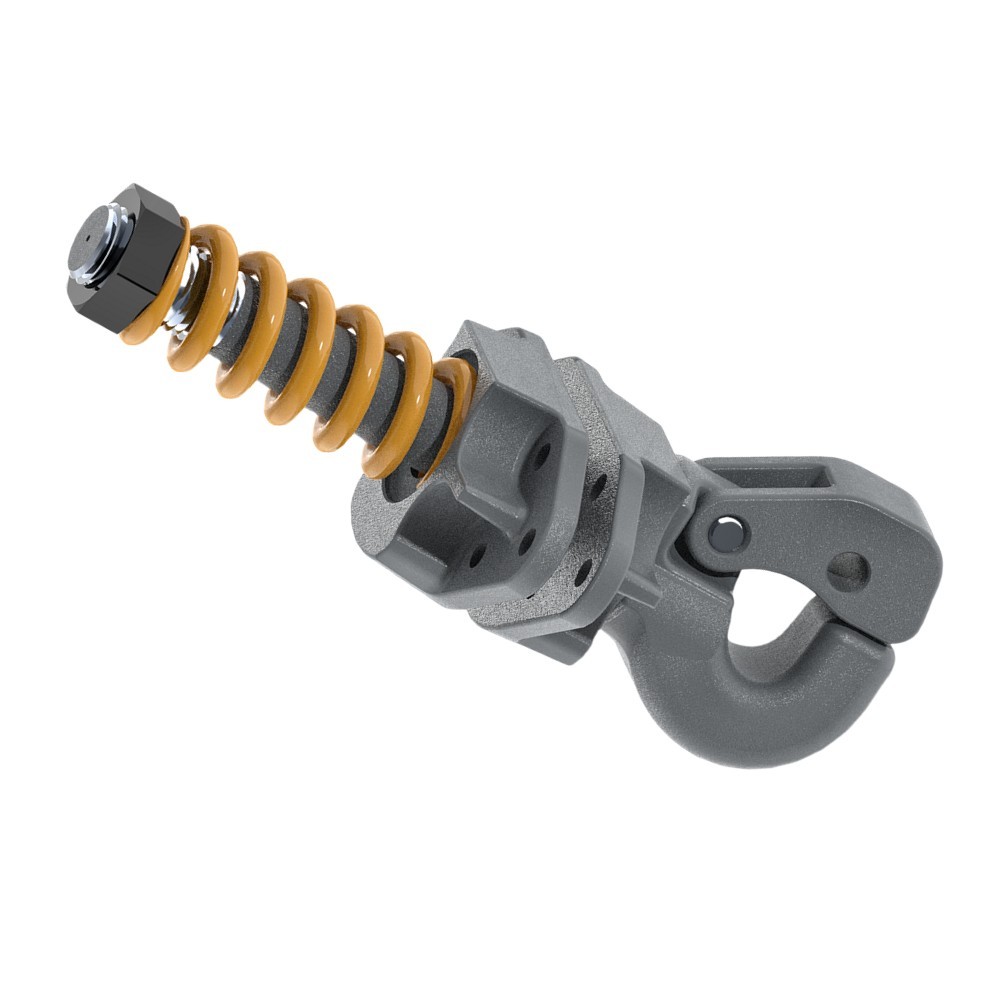

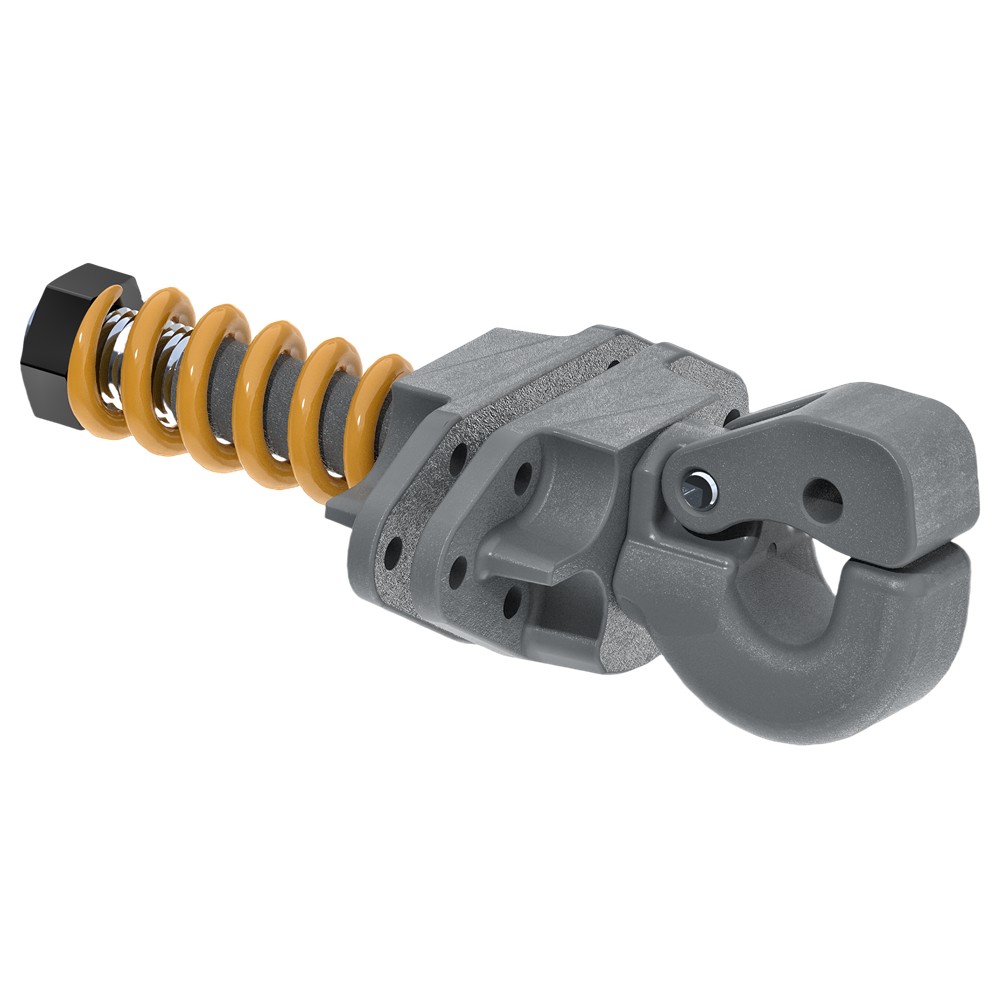

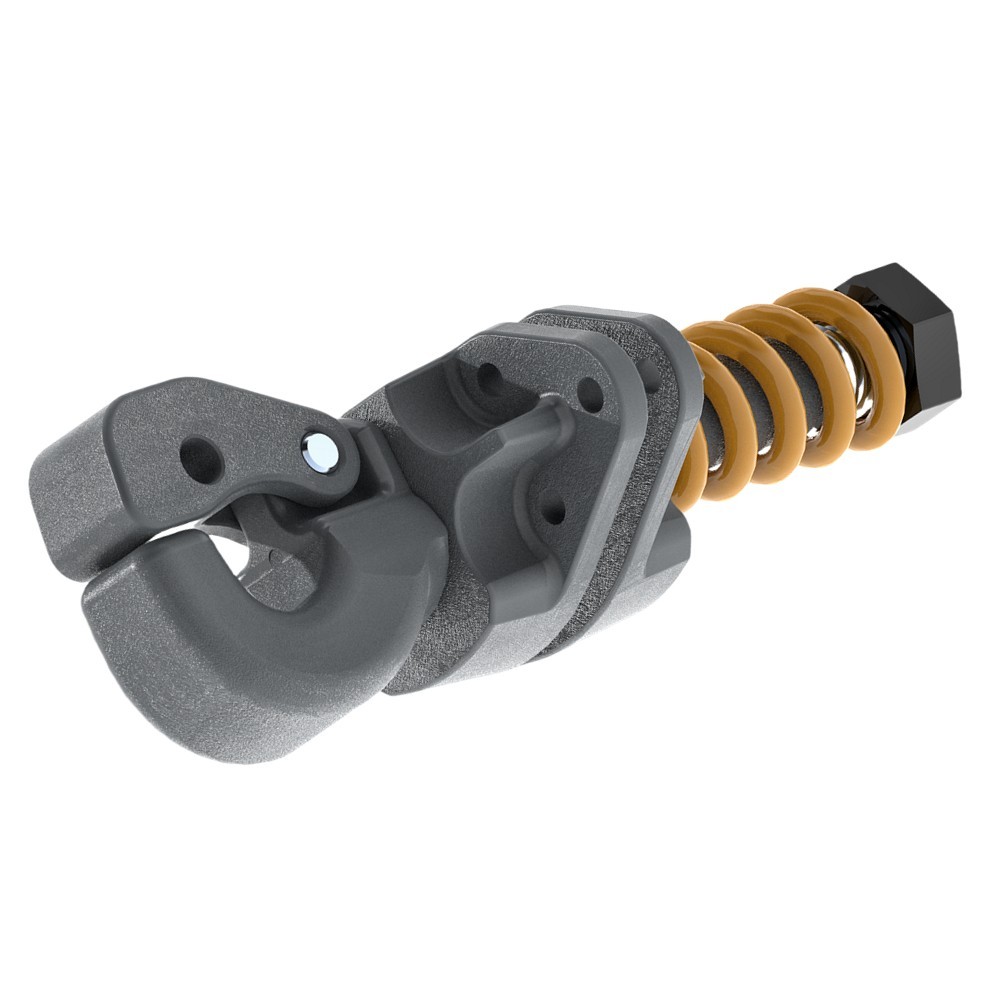

A standard setup consists of two primary components: the pintle hook (the hook body) mounted on the towing vehicle, and the lunette ring (the towing eye/ring) installed on the towed trailer. Once the lunette ring is dropped over the hook, a latch mechanism lowers and locks the ring securely inside the hook.

Below is a detailed introduction to the applications and manufacturing processes of pintle hooks:

Pintle Hook Specifications

1. Manufacturing Process of Pintle Hooks

Because pintle hooks bear safety-critical, heavy-duty loads, their manufacturing process must guarantee exceptional strength, toughness, and fatigue life. The primary manufacturing workflow is outlined below:

1.1 Core Material Selection

The hook body and latch arm of a pintle hook are typically fabricated from high-strength alloy steel. Common materials include:

Forged Steel: Most high-quality, high-capacity pintle hooks are forged. Forging optimizes the metal's grain structure, significantly enhancing its strength and impact resistance.

Cast Steel: Some light-duty or specialty designs may use precision casting processes, though these are generally less durable than forged components.

1.2. Main Manufacturing Workflow

Step 1: Drop Forging

This is the most critical phase. An alloy steel billet is heated to its forging temperature and placed into large forging dies, where immense pressure shapes the metal. This process creates a solid, one-piece construction for the hook body. Forging forces the internal metal grains to flow along the contours of the hook, virtually eliminating internal defects and reinforcing the structure.

Step 2: Heat Treatment

Following the forging process, the workpiece must undergo a rigorous heat treatment cycle (such as quenching and tempering) to impart the final desired physical properties. This step precisely balances the hook's

2. Primary Applications of Pintle Hooks

The core advantages of pintle hooks lie in their rugged durability and their ability to allow a wide range of vertical and rotational movement for the trailer. This makes them indispensable in both on-road and off-road environments.

2.1. Industry Applications

Construction & Heavy Equipment Transport: This is the most common industrial use for pintle hooks. They are used to tow flatbed trailers carrying excavators, loaders, rollers, and bulldozers. Their high towing capacities—with some models rated up to 60,000 lbs or even higher—are unmatched by standard ball hitches.

Military & Tactical Vehicles: Military trucks and tactical vehicles almost universally utilize pintle hooks. On rugged battlefields, muddy roads, or rough terrain, an extremely high degree of freedom is required between the towing vehicle and the trailer to prevent the towing assembly from snapping when traversing uneven topography.

Agriculture & Farming Operations: Agricultural tractors use pintle hooks to tow grain trailers, fertilizer spreaders, and other heavy farm implements. Farmland terrain is often uneven, and ball hitches are prone to detaching or sustaining damage under severe jolting.

Commercial Transport & Utility Fleets: Utility companies (such as electric and telecom providers) use pintle hooks to tow specialized equipment, such as cable reel trailers. Municipalities rely on them to haul snowplows, generator trailers, or portable light towers.

Dump Trucks & Waste Handling: Heavy-duty dump trucks sometimes use pintle hooks to tow additional dump trailers (known as "pup trailers") to maximize cargo capacity per trip.

2.2. Technical Advantages in Key Scenarios

Off-Road Terrain: Ball hitches are primarily designed for highway use, where vertical range of motion is limited. In contrast, the pintle and lunette system allows the trailer to experience dramatic vertical pitching and side-to-side rotation relative to the towing vehicle without binding or breaking.

Extreme Loads: Pintle hooks are typically manufactured from solid steel. Their structural engineering allows them to withstand immense tongue weight (vertical downforce) as well as gross towing weight.

As a leading certified foundry in China, Lihuacasting specializes in the custom manufacturing of heavy-duty pintle hook castings. Utilizing advanced investment casting and sand casting processes, we produce high-strength carbon steel and alloy steel towing components engineered for the most demanding environments. From 3D prototyping and custom mold design to precision machining and strict non-destructive testing (NDT), we deliver tailored OEM/ODM solutions that meet rigorous global towing standards. Partner with us for reliable quality, high-volume capacity, and competitive factory-direct pricing
