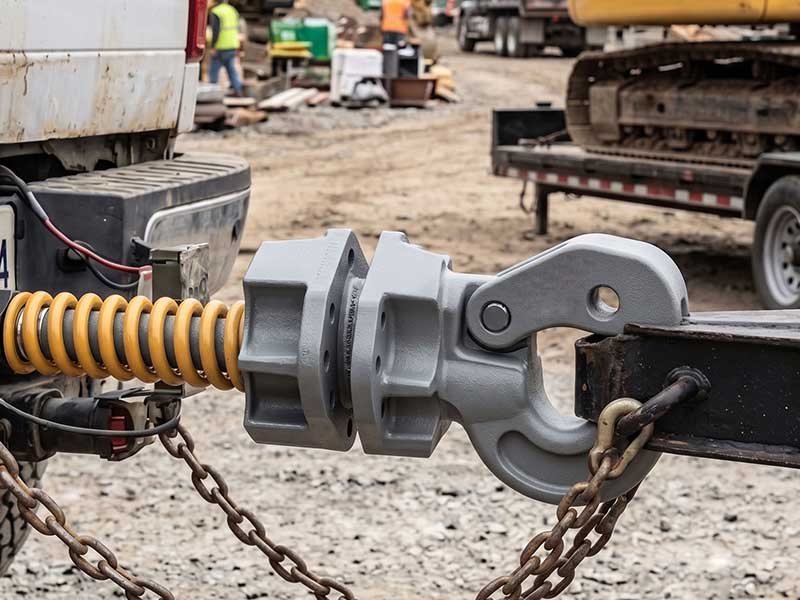

The Guide to Heavy-Duty Pintle Hooks: Custom Casting & Procurement Solutions

In the demanding worlds of agricultural machinery, commercial trailers, and construction equipment like loaders and excavators, a secure towing connection is non-negotiable. At the heart of these high-capacity towing systems is the Heavy-Duty Pintle Hook.

For B2B buyers and procurement managers, sourcing reliable towing components requires a deep understanding of manufacturing quality, material strength, and customization options.

This guide explores the types, manufacturing processes, and procurement strategies for high-quality pintle hooks, and how advanced casting techniques ensure maximum safety.

Common Types of Heavy-Duty Pintle Hooks

Selecting the right pintle hook depends heavily on the specific application, terrain, and Gross Trailer Weight (GTW). The three most common configurations include:

• Rigid Pintle Hooks: Ideal for standard heavy-duty towing over relatively even terrain. These offer high load capacities and a sturdy, fixed connection.

• Swivel Pintle Hooks: Designed for off-road or uneven terrain (common in agriculture and forestry). The hook rotates on its axis to relieve twisting forces between the towing vehicle and the trailer.

• Combination Hitches: Featuring both a pintle hook and a standard tow ball, these offer versatile towing options for fleets that manage various types of trailers.

A heavy-duty pintle hook is an industrial towing connection designed to secure a lunette ring (or towing eye) for hauling massive weights over rough terrain. They are essential for construction, agriculture, and military applications, offering superior articulation and weight capacities ranging from 5 to 50 tons.

Top Types of Heavy-Duty

• Pintle HooksStandard Rigid Mounts: Bolt directly to a mounting plate or flatbed truck bumper. They offer high capacities (up to 50+ tons) but transmit a lot of shock and jerking directly to the tow vehicle.

• Combination Ball & Pintle: Feature a pintle hook with an integrated hitch ball (typically 2" or 2-5/16"). This allows you to switch between lunette rings and standard ball couplers without changing hardware.

• Cushioned/Shock-Absorbing: Built with internal springs, airbags, or polyurethane dampeners to absorb the heavy jerks, bumps, and tugs common with pintle towing.

• Swivel-Type: The hook rotates to reduce torsional stress on the towing components. These are highly recommended for off-road use and uneven terrain.

Key Specifications to Look For

Gross Towing Weight (GTW): Ranges from 10,000 lbs for light/medium duty, to 100,000+ lbs (50 tons) for heavy-duty commercial rigs.

Lunette Ring Eye Size: Typically sized to fit 2-1/2" or 3" inner diameter (ID) rings.

Mounting Style: Usually available as a 2" or 2-1/2" receiver hitch mount, or a standard 4-bolt or 6-bolt plate mount.

Materials: Look for forged steel construction with corrosion-resistant powder coating.

The Manufacturing Process: Why Casting Matters

When dealing with massive tow weights, fabricated or welded hooks often fall short due to structural weak points. The most durable Heavy-Duty Pintle Hooks are manufactured using advanced casting methods.

Investment Casting for Superior Strength

Investment casting (also known as lost-wax casting) is the gold standard for producing complex, high-strength towing components. This process involves creating a wax pattern, coating it in a ceramic shell, and pouring molten steel alloy into the mold.

The primary advantages of investment casting for pintle hooks include:

Exceptional Structural Integrity: Casting creates a single, solid piece of metal with no weld seams or weak joints.

High Precision: Investment casting achieves tight dimensional tolerances, ensuring that the hook and the tow ring mate perfectly to reduce wear.

Material Versatility: It allows for the use of high-grade alloy steels that can be heat-treated for maximum tensile strength and impact resistance.

After the initial casting, precision CNC machining is utilized to refine the mounting holes and locking mechanisms, ensuring every hook meets strict international safety standards.

Industry Challenges & Engineering Solutions

Heavy-duty towing environments subject equipment to extreme stress. Below is a breakdown of common challenges faced by equipment manufacturers and the engineering solutions required to overcome them.

Procurement Needs: OEM and Custom Solutions

For global machinery brands and aftermarket distributors, off-the-shelf products do not always meet unique project specifications. Modern procurement relies heavily on suppliers who can provide flexible manufacturing solutions:

• OEM Manufacturing: Original Equipment Manufacturers require exact replicas of their proprietary designs. A capable factory must seamlessly integrate with the buyer's engineering team to produce components at scale.

• Custom Engineering: Whether you need a unique mounting bolt pattern, a specialized locking latch, or a specific alloy composition, custom manufacturing capabilities are essential.

• Quality Certification: B2B buyers must source from facilities that provide complete material trace logs, load testing reports, and ISO certifications.

Partner with a Premier Chinese Casting Manufacturer

Finding a reliable supply chain partner is the most critical step in your procurement process. As a leading casting factory based in China, we specialize in high-performance mechanical components for agricultural machinery, trailers, loaders, and excavators.

Lihuacasting can offer comprehensive OEM and custom manufacturing services to meet your exact specifications. By leveraging advanced investment casting, sand casting, and precision CNC machining, we deliver Heavy-Duty Pintle Hooks and structural parts that offer unmatched durability and safety.

Whether you need standard catalog parts or fully customized towing solutions, our factory is equipped to support your global procurement needs with competitive pricing, strict quality control, and reliable delivery times. Contact us today to discuss your next project and secure the highest quality casting components for your heavy machinery.
