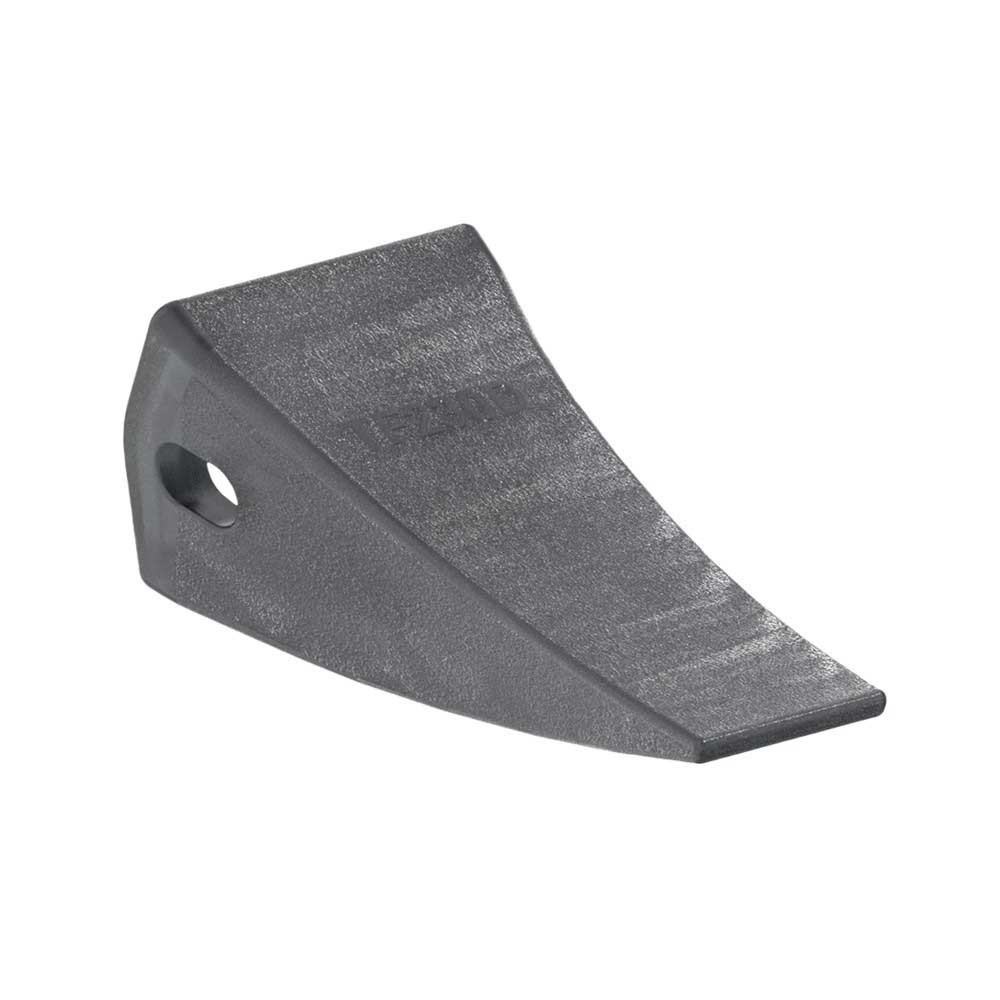

TF230 Bucket Teeth & U43792 Adapter for Excavator

1. Product Overview

The TF230 Bucket Tooth and U43792 Adapter assembly is engineered for maximum durability and penetration in demanding earthmoving applications. Manufactured from a premium Chromium Moly Alloy, this ground engaging tool (GET) system is designed to withstand extreme impact and abrasive wear. Whether you are outfitting an excavator, wheel loader, or backhoe, the TF230/U43792 combination ensures prolonged operational life, reducing downtime and lowering your overall maintenance costs.

2. Detailed Specifications

3. Key Features

1. Extreme Durability: With a Brinell Hardness (HB) rating of 450 to 520, these teeth resist severe abrasion in rocky and sandy environments.

2. High Yield Strength: Rated at ≥1100 MPa yield and ≥1350 MPa tensile strength, the alloy resists bending and snapping under heavy breakout forces.

3. Optimized Penetration: The sleek 2.12" width and aerodynamic profile allow the machine to cut through compacted soils with less hydraulic resistance, saving fuel.

4. Applications

The TF230 and U43792 Bucket Teeth GET system is highly versatile and built for medium-to-heavy duty tasks:

1. General Construction: Trenching, site prep, and foundation digging.

2. Quarry & Mining: Handling abrasive aggregates, gravel, and shot rock.

3. Infrastructure: Roadwork and utility installations requiring reliable ground penetration.

4. Secure Fitment: The specialized Flex Pin system ensures a tight lock between the TF230 tooth and the U43792 adapter, preventing mid-operation detachment.

5. Manufacturing Process & Materials

This bucket teeth and adapter assembly is cast using top-tier Chromium Moly Alloy, a material renowned in the heavy equipment industry for its exceptional balance of hardness and toughness.

The manufacturing relies on precision Lost-Wax and Silica Sand casting processes, ensuring high dimensional accuracy so the tooth mounts perfectly flush with the adapter. Post-casting, the metal undergoes a rigorous three-step heat treatment:

1. Normalizing: Refines the grain structure of the steel.

2. Quenching: Rapid cooling to achieve the baseline 450-520 HB hardness.

3. Tempering: Relieves internal stresses, ensuring the tooth retains ≥25 J of impact resistance so it won't shatter against hard rock.

6. Accessories & Components

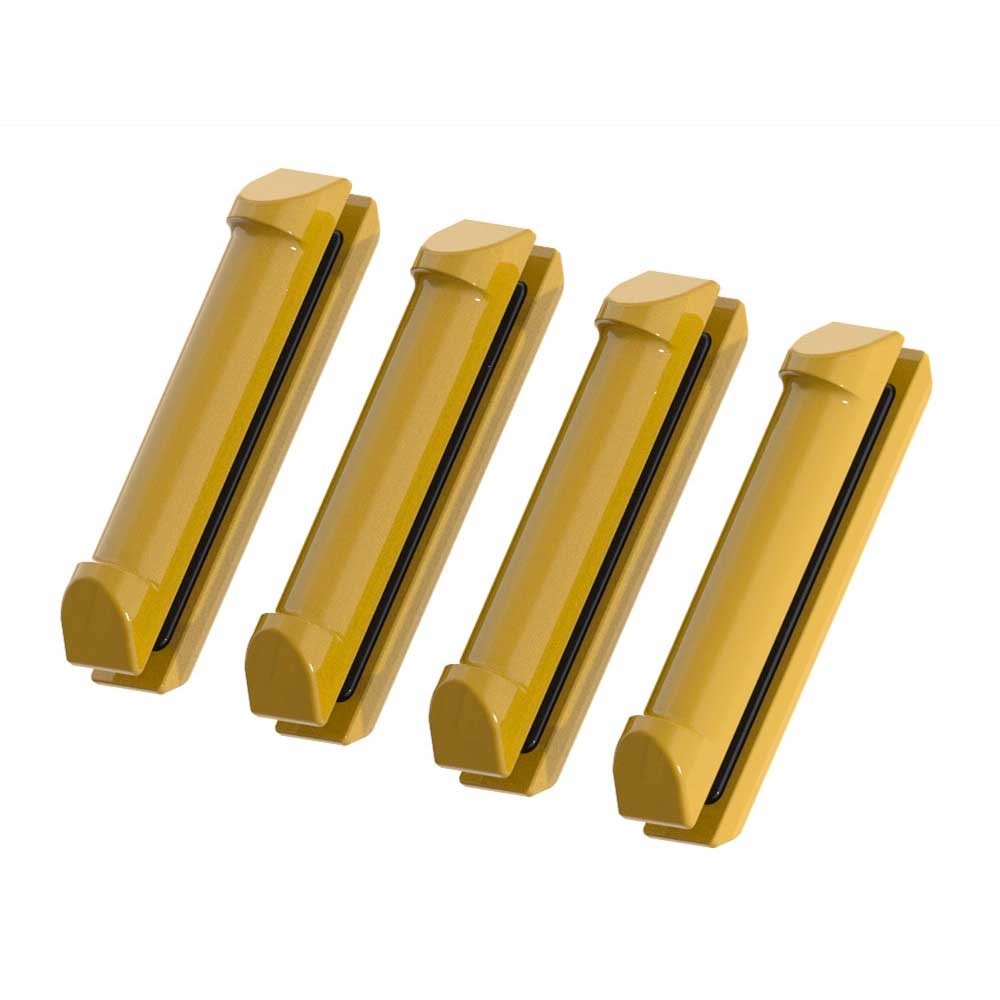

To complete the installation, this assembly requires the 23 Flex Pin. The flex pin is a specialized retaining fastener designed to compress upon insertion and expand inside the locking chamber, creating a reliable, vibration-resistant hold. Pins are highly recommended to be replaced every time a new tooth is installed to ensure maximum safety.

7.  Frequently Asked Questions (FAQs)

Q1: How do I install the Flex Pin on the TF230?

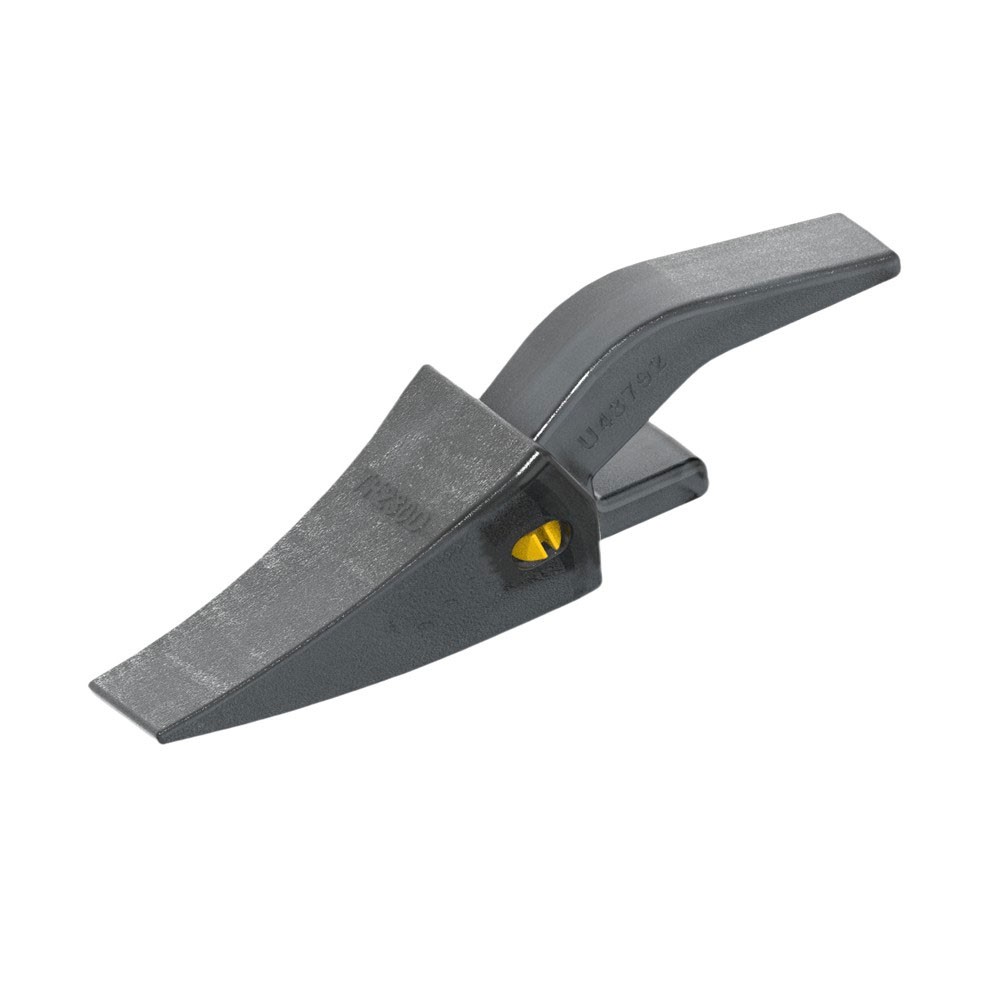

Align the TF230 tooth over the U43792 adapter. Once the pin holes line up, use a pin punch and a heavy mallet to drive the 23 Flex Pin through the side slot until it sits flush.

Q2: What does the 450-520 HB rating mean for my equipment?

HB stands for Brinell Hardness. A rating of 450-520 is considered premium-grade for ground engaging tools. It means the steel is hard enough to resist wearing down quickly in sand and rock, but thanks to the Chromium Moly alloy, it isn't brittle enough to shatter.

Q3: Are these parts certified?

Yes. The production process is certified under the ISO 9001-2005 quality management system, guaranteeing consistent material properties and dimensional tolerances across every batch.
