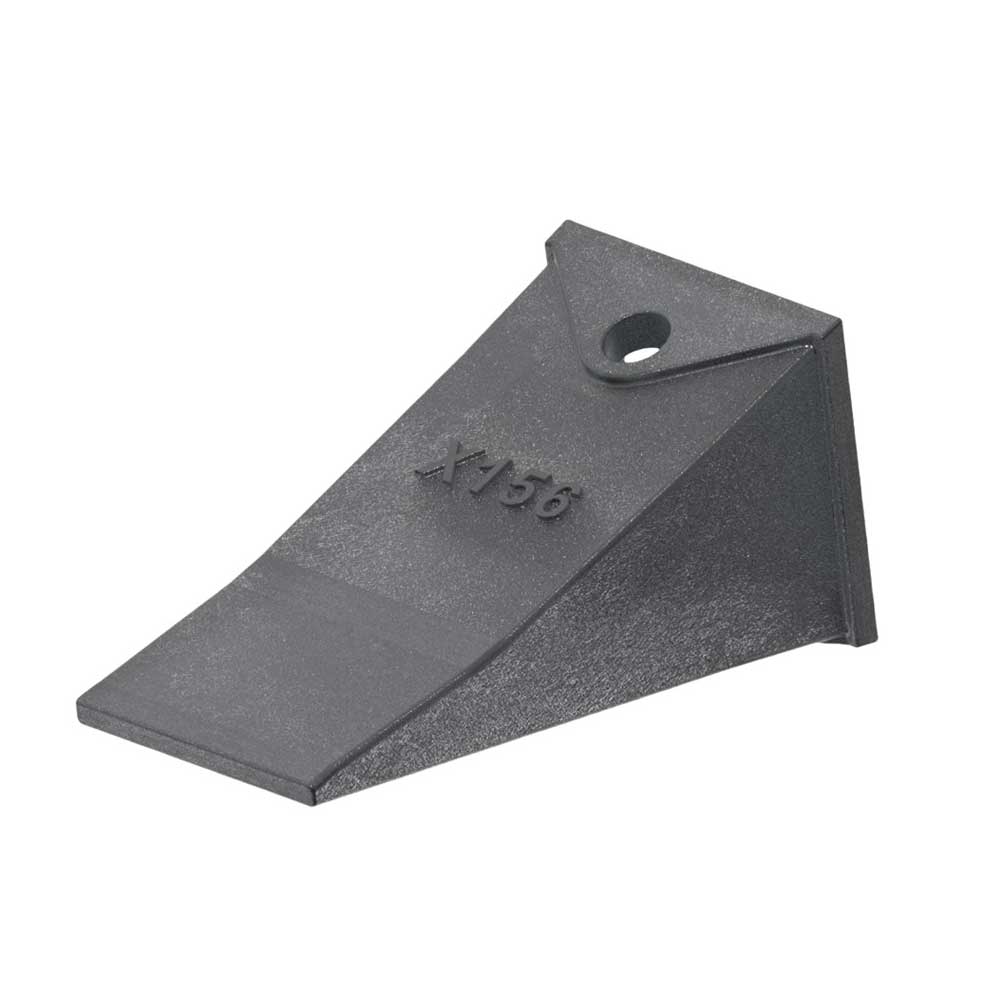

X156 Bucket Teeth Skid Steers & Excavators Replacement Teeth

1. Product Overview

The X156 Bucket Teeth (part of the Hensley 156 Style Parabolic Tooth System) is an industry-standard, top-tier Ground Engaging Tool (G.E.T.) engineered for unparalleled durability and digging performance.

Widely recognized for its versatility and perfect fitment, the X156 is a direct replacement tooth designed primarily for light to medium earthmoving machinery, including skid steer loaders, mini excavators, and backhoes.

Cast from high-grade alloy steel and heat-treated for superior hardness, this standard dirt profile tooth excels in general-purpose excavation, effortlessly penetrating hard soil, gravel, and rocky terrains.

2. Detailed Specifications

3. Key Features

1. Exceptional Wear Resistance: Manufactured from heavy-duty alloy steel to withstand abrasive environments, reducing the frequency of replacements.

2. Parabolic Design: The specialized parabolic profile helps direct impact stress away from the pin, preventing breakage and extending the lifespan of the adapter.

3. Universal Compatibility: Specifically engineered as a drop-in replacement for numerous OEM brands, ensuring seamless integration.

4. Self-Sharpening Profile: The standard dirt tooth shape is designed to wear down evenly, maintaining a sharp point for easier penetration into compacted soils.

5. Quick Installation: Top-pinned design allows for fast, on-site tooth changes with just a basic punch tool and a heavy hammer.

4. Manufacturing Process

1. Material Selection: Premium-grade carbon alloy steel is chosen for its structural integrity.

2. Precision Casting: The metal is melted and poured into highly precise sand or investment molds to create the exact X156 parabolic pocket profile.

3. Heat Treatment & Tempering: The cast teeth undergo a rigorous heat-treatment process to achieve an optimal balance—high surface hardness to resist abrasion and internal toughness to absorb shock impacts.

4. Quality Control: Each batch is subjected to dimensional checks, hardness tests, and computer-assisted fitment analysis to guarantee OEM-quality standards.

5. Finishing: The teeth are either left in raw form (ready to prime/paint) or treated with an anti-rust protective coating for extended shelf life.

5. Applications

The X156 bucket teeth are ideally suited for light to medium-duty applications, including:

1. Trenching and Excavation: Digging foundations, utility trenches, and drainage ditches.

2. Landscaping & Site Prep: Leveling ground, uprooting small stumps, and penetrating hard-packed dirt or clay.

3. Construction & Demolition: General material handling, moving gravel, sand, and light rubble.

4. Compatible Equipment: Mini excavators, skid steer loaders, backhoes, wheel loaders, and graders.

5. Compatible Brands: Bobcat, Caterpillar (CAT), John Deere, Case, Komatsu, Kubota, JCB, and Takeuchi.

6. Information on Accessories

To ensure your X156 teeth operate safely and efficiently, specific accessories are required:

1. P156 Roll Pin (Flex Pin): The essential locking mechanism that secures the tooth to the adapter. (Dimensions: ~2" length, 3/8" diameter). Always replace the pin when installing a new tooth.

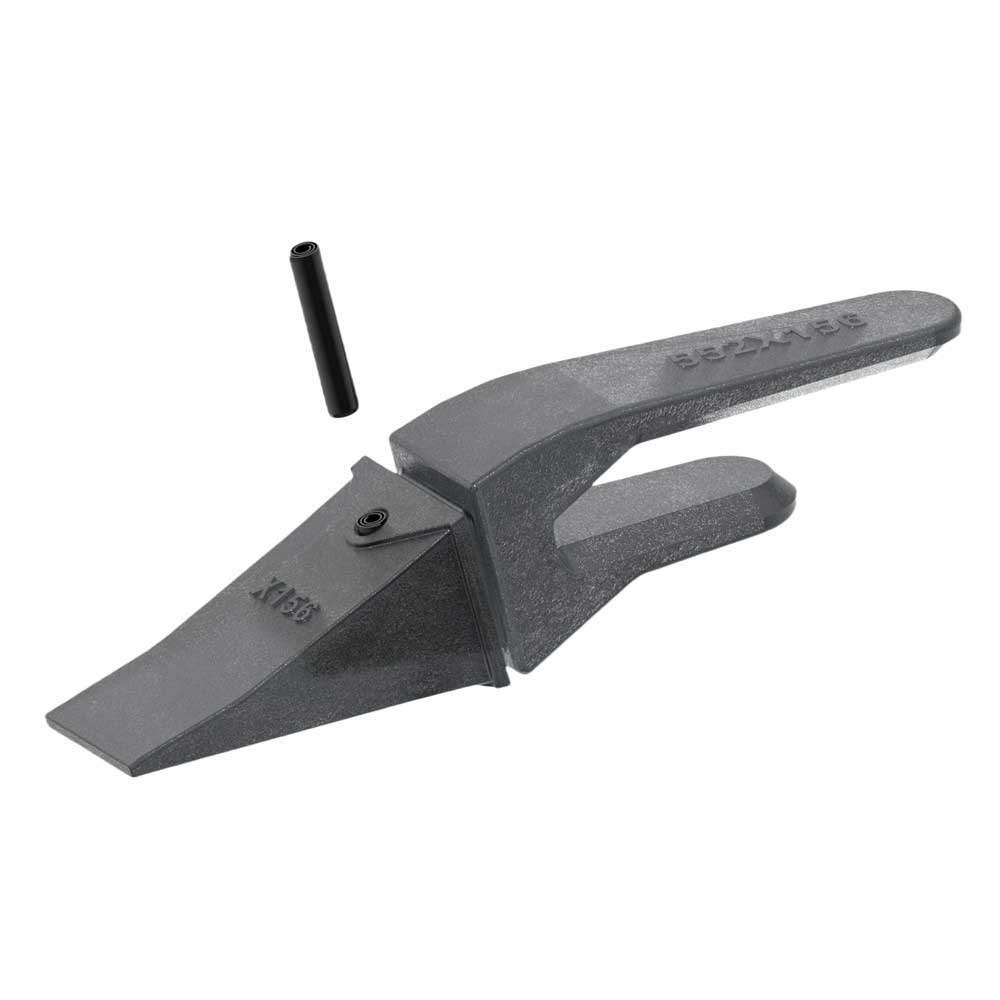

2. 156 Series Adapters: (e.g., 230x156 for 5/8" lip or 550x156 for 1" lip). The adapter is welded or bolted to the bucket lip and receives the X156 tooth pocket.

3. Pin Punch Tool: Recommended for safe and fast extraction of the roll pin during change-outs.

7. Common Industry/Buyer FAQs

Q1: Will the X156 tooth fit my Bobcat skid steer?

A: Yes, as long as your Bobcat bucket is equipped with Hensley-style 156 Series adapters. It is a universal fit for that specific adapter size, regardless of the machine's brand.

Q2: How do I know when it's time to replace my bucket teeth?

A: You should replace your bucket teeth when they have worn down to the point where penetration becomes difficult, when the tooth housing becomes dangerously thin, or if you notice cracking. Operating with extremely worn teeth places excessive strain on the machine's hydraulics and the bucket lip.

Q3: Can I weld the X156 tooth directly to my bucket?

A: No. The X156 is a replaceable tooth designed to slide onto an adapter (shank) and be secured with a roll pin. The adapter is the component that is welded to the bucket lip.

Q4: Do I need a special tool to install these?

A: No specialized hydraulic tools are needed. A heavy hammer and a standard pin punch are sufficient to drive the P156 roll pin in and out of the assembly.

Q5: What is the difference between X156 and X156L?

A: The X156 is the standard length (around 4.6 inches), offering great leverage and prying force. The X156L is the "Long" version (around 5.3 to 5.6 inches), providing a longer wear life and slightly deeper penetration before needing replacement.
