1. Product Overview

The 23TL Tiger Bucket Tooth is a premium, high-performance Ground Engaging Tool (G.E.T.) specifically designed to fit the widely used H&L 230 series adapters.

Featuring a sharp, single-point "tiger" profile, this heavy-duty tooth is engineered for maximum penetration in severe digging conditions.

Whether you are operating an excavator, a backhoe, or a skid steer, upgrading to 23TL tiger teeth significantly reduces digging resistance, allowing your machine's bucket to cycle faster through compacted materials while saving fuel and reducing wear on the bucket itself.

2. Key Features

1. Aggressive Tiger Profile: The sharp, chisel-like point is specifically designed to pierce through hardpan, clay, frost, and rocky terrain with ease, offering vastly superior penetration compared to standard flat or blunt teeth.

2. Universal 230 Series Fit: Designed as a direct drop-in replacement for any OEM 23-style bucket teeth, seamlessly fitting all existing 230 series weld-on adapters (such as the 2740-23).

3. Superior Metallurgy: Cast from high-spec, low-carbon alloy steel, ensuring the perfect balance between surface hardness (for wear resistance) and core toughness (to prevent snapping under heavy shock loads).

4. Improved Efficiency: By breaking up compacted material more effectively, these teeth reduce the strain on your machine’s hydraulics and boom, lowering overall fuel consumption and speeding up job completion times.

3. Detailed Specifications

4. Manufacturing Process

Our 23TL bucket teeth are precision-cast rather than forged, allowing for an optimized internal structure.

1. Casting: Molten high-spec low-carbon alloy steel is poured into precise molds to form the exact inner pocket and outer tiger-point dimensions.

2. Heat Treatment & Tempering: The cast teeth undergo a rigorous heat-treatment and tempering process. This vital step hardens the steel to endure severe abrasive wear while retaining enough ductility to absorb impact shocks without fracturing.

3. Metallurgy Testing: Each batch is subjected to strict metallurgical testing to ensure consistency in tensile strength and structural integrity before hitting the field.

5. Applications

The 23TL bucket teeth are highly versatile and compatible with a vast array of compact and heavy machinery.

1. Compatible Equipment Types: Backhoe loaders, skid steer loaders, mini excavators, trenchers, and front-end loaders.

2. Compatible Brands: Case (fits popular models like the 580, 580K, 580M, 480, and 680 series), Bobcat, John Deere, JCB, Kubota, Takeuchi, and Komatsu.

3. Ideal Terrain: Engineered specifically for challenging soils including highly compacted dirt, heavy clay, frozen ground (frost), shale, and rocky terrain.

6. Accessories & Complementary Parts

To get the most out of your 23TL teeth, ensure you have the correct mating hardware:

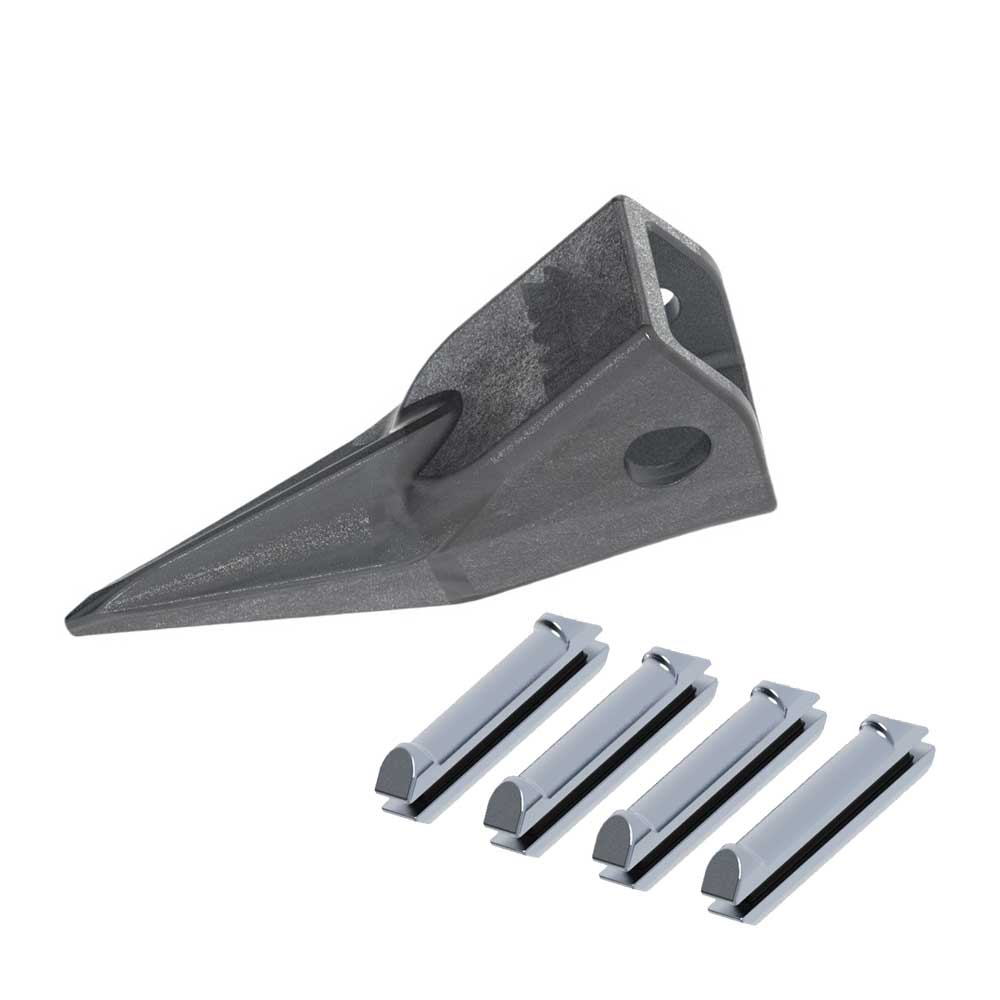

1. 23FP / 23TFP Flex Pins: These side-mount steel flex pins are strictly required to lock the tooth onto the adapter. (Dimensions: ~2.15" length).

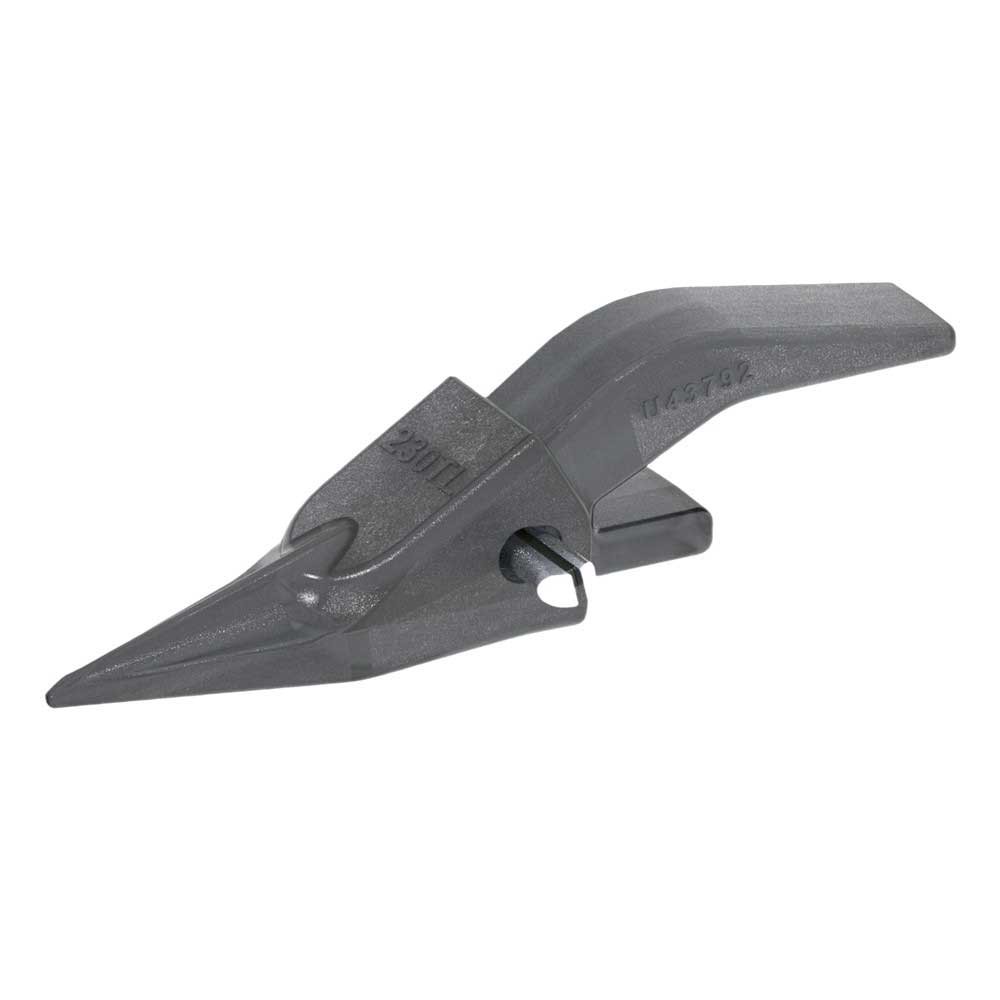

2. U43792 Weld-on Adapters: If your bucket needs new shanks, these weld-on adapters are the correct standard fit for the 23TL teeth.

3. 23WTL (Twin Tiger Teeth): Often used on the outside corners of the bucket in conjunction with standard 23TL teeth in the center, providing enhanced clearance and cutting widths.

7. Important Considerations for Buyers

1. Verify Your Adapter Size: The 23TL fits an H&L 230 series shank. Before purchasing, measure the shank on your bucket. It should be roughly 1.5" wide and 1.75" tall.

2. Pin Orientation: Ensure your current teeth use a side-mount pin (horizontal insertion) rather than a top-pin. The 23TL relies on horizontal flex pins.

3. Terrain Matching: While tiger teeth are phenomenal for penetration in hard ground, their sharp points mean they have less wear material than a flat or standard tooth. If you are exclusively digging in highly abrasive, loose sand, a standard bucket tooth (like the 230 or 230F) might offer a longer wear life.

8. Common Industry & Buyer FAQs

Q1: Will the 23TL teeth fit my Case 580 backhoe?

A: Yes. The 23TL is a very common replacement tooth for the Case 580 series (including 580B, 580C, 580K, 580M, etc.) provided your bucket is equipped with standard 230 series adapters.

Q2: How do I install the 23TL bucket teeth?

A: Installation is quick and straightforward. Slide the tooth over the weld-on adapter and align the holes on the side. Drive the 23FP flex pin through the side hole using a heavy hammer and a punch until it is flush. The tension of the flex pin holds the tooth securely in place.

Q3: Do these teeth come with the mounting pins?

A: This depends on the specific listing or package you select. While some 5-packs or 10-packs include the 23FP flex pins, single-tooth purchases often require you to buy the pins separately. Always check the packaging details.
